Omcn 970 10 ton mobile column lift

Set composed of 4 columns. Capacity 10000Kg each single column

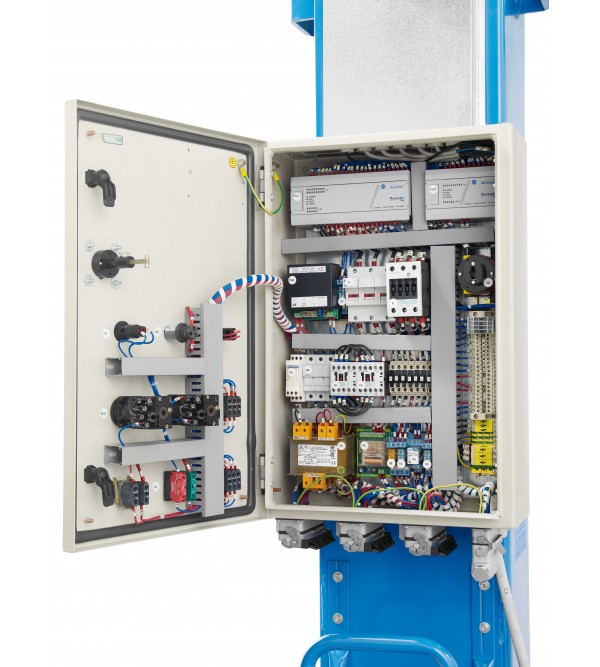

The operating system is equipped with a trapezoidal life coupled directly to a self-braking worm screw gearmotor in an oil bath. Bronze safety and bearing nut. The lubrication of the two nuts is forced with oil with a pump activated automatically at each descent. Manual maneuvering rudder with expanded polyurethane wheels. The operating device is composed of a main microprocessor (PLC1) for the control of synchronism and automatic realignment, and another secondary microprocessor (PLC) for the redundancy of the safety system. Single button on each single column with the possibility of maneuvering even in the event of failure. Electrical panel on each column from which it is possible to control the lift according to the selected operating modes. Emergency button on the electrical panel of each individual column.

Characteristics:
Capacity: 10000Kg
Engine power: 4Kw
Three-phase motor: 400V- 50Hz
Measurements: A: 580mm – B: 1100mm – C: 1165mm – D: 170mm – E: 1770mm – F: 570mm—G: 320mm –H: 460mm – I: 2790mm – Ømax: 1200—Ømin: 900 --Weight: 850Kg
