Mobile column lift 8.5 ton Omcn 995W

Set composed of 4 columns. Capacity 8500 each single column. Equipped with wireless device

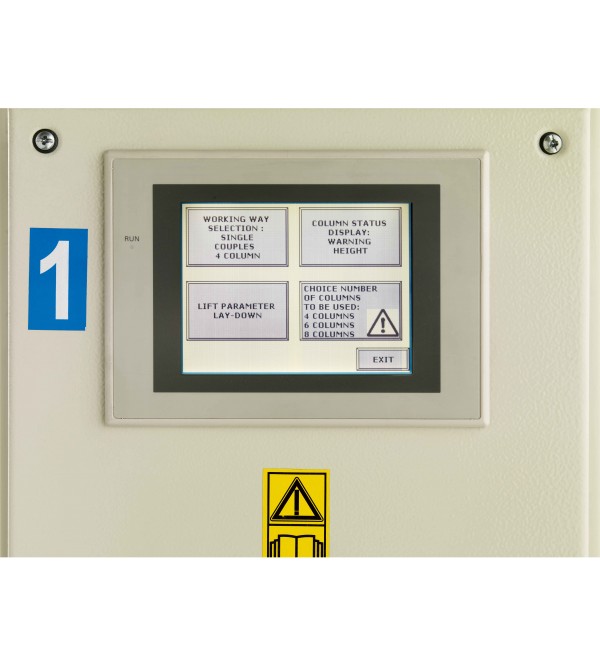

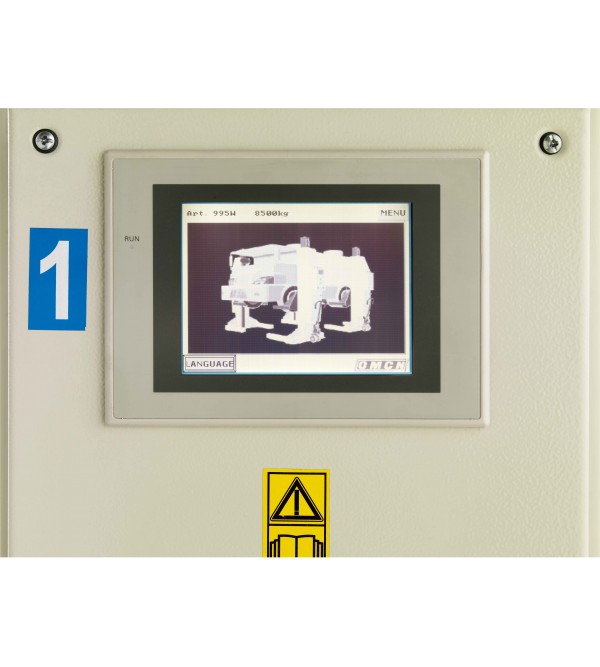

Lifting occurs by means of hydraulic pistons with a safety valve which is inserted directly into the cylinders to prevent accidental breakage of the supply pipes. Alignment and synchronism of the trolleys, regardless of the load distribution. Descent speed with hydraulic compensation. Mechanical safety supports with automatic insertion. Slow descent mode to allow correct and precise positioning of the vehicle on special supports or columns. Columns equipped with two high-capacity batteries that guarantee great autonomy, rechargeable using a common 220 V socket. Large touchscreen display on the master column to select the operating mode, view the heights of the columns, set the desired stroke, view messages, functional warnings and alarm situations. The lift is equipped with a communication system that uses Wireless LAN devices, created and certified to operate in the industrial sector, in particularly critical environments. This ensures high standards of safety, immunity to disturbances and reliability.

Characteristics:
Capacity: 8500Kg
Motor power: 3Kw (24Vdc)
Three-phase motor: 400V- 50Hz
Battery charger power supply: 220V- 50Hz
Measurements: A: 580mm – B: 1100mm – C: 1325mm – D: 120mm – E: 1770mm – F: 715mm—G: 350mm –H: 638mm – I: 2612mm—L: 3855mm – Ømax: 1200—Ømin: 900 - -Weight: 720Kg
